Vertical Band Saw

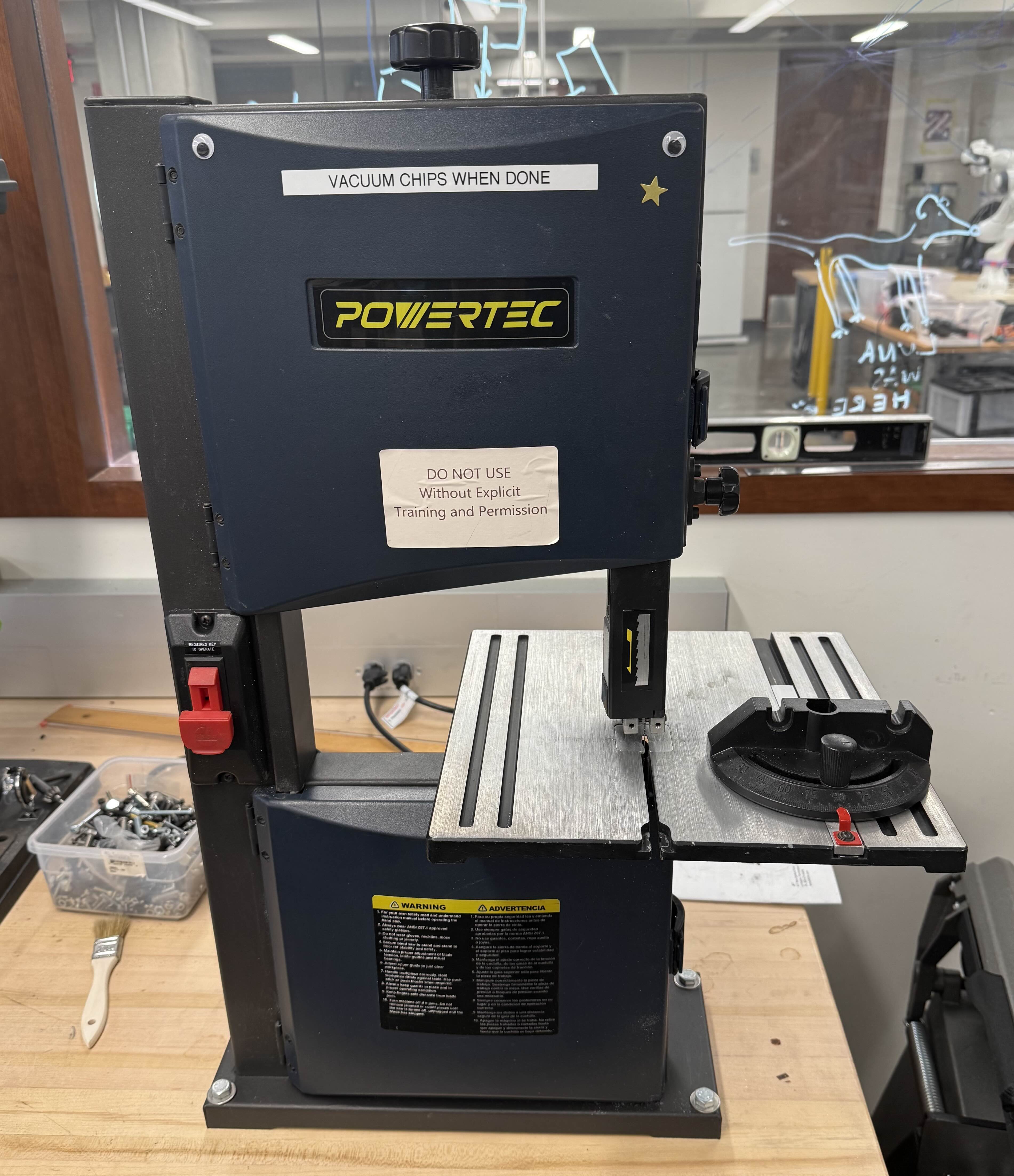

Vertical band saw

The CRB Makerspace has a Powertec BS900 9" vertical band saw to cut plastics and non-ferrous metals.

Hazard level

RED

Warning

  • Risk of severe cuts and amputations from saw blade
  • Risk of workpiece kickback or binding
  • Pinch points between blade and table
  • Blade breakage may cause flying metal fragments
  • Cut metal parts may get hot and cause burns
  • Risk of inhalation of plastic/metal dust

Safety

  • Always wear safety glasses.
  • Do not wear gloves, neckties, loose clothing, or jewelry.
  • Adjust the upper guide to just clear of workpiece.
  • Handle workpiece correctly. Hold workpiece firmly against the table. Use push stick or push blocks when needed.
  • Round stock can get caught and spin. Prevent rotation or use the horizontal bandsaw (with vise) instead.
  • Keep fingers safe distance from blade path. Do not push with your fingers in line with the blade.

Instructions for use

Info

Use of this tool requires permission from management and a key to operate. Check out the key from Raphael or authorized personnel before use and return it immediately after.

Do not cut steel in the CRB Makerspace

  • Always use eye protection.
  • Lower blade guide to adjust above the intended workpiece.
  • Insert the key and turn on the machine.
  • Feed steadily. No fingers in line with blade. Use push sticks for small parts.
  • No backing out while running. Stop the machine first or you risk pulling out a moving blade.
  • Turn off the machine and return the key.
  • Clean up your workspace.

Teeth per inch

Fewer teeth per inch (TPI) provides a faster feed rate and a rougher finish. More teeth per inch provide a smooth finish but slower cut. At least three teeth should be in the material when cutting.

Minimum material thickness

Teeth per inch Minimum material thickness
6 TPI 1/2" thick
10 TPI 5/16" thick
14 TPI 1/4" thick
18 TPI 5/32" thick
24 TPI 1/8" thick

Blade width

When making straight cuts, use the widest blade available. For contour or scroll work, select a blade that fits the minimum radius requirement:

Minimum cutting radius

Blade thickness Minimum cutting radius
1/8" blade 3/16" radius
1/4" blade 5/8" radius
3/8" blade 1-1/2" radius
1/2" blade 2-1/2" radius
