Horizontal Band Saw

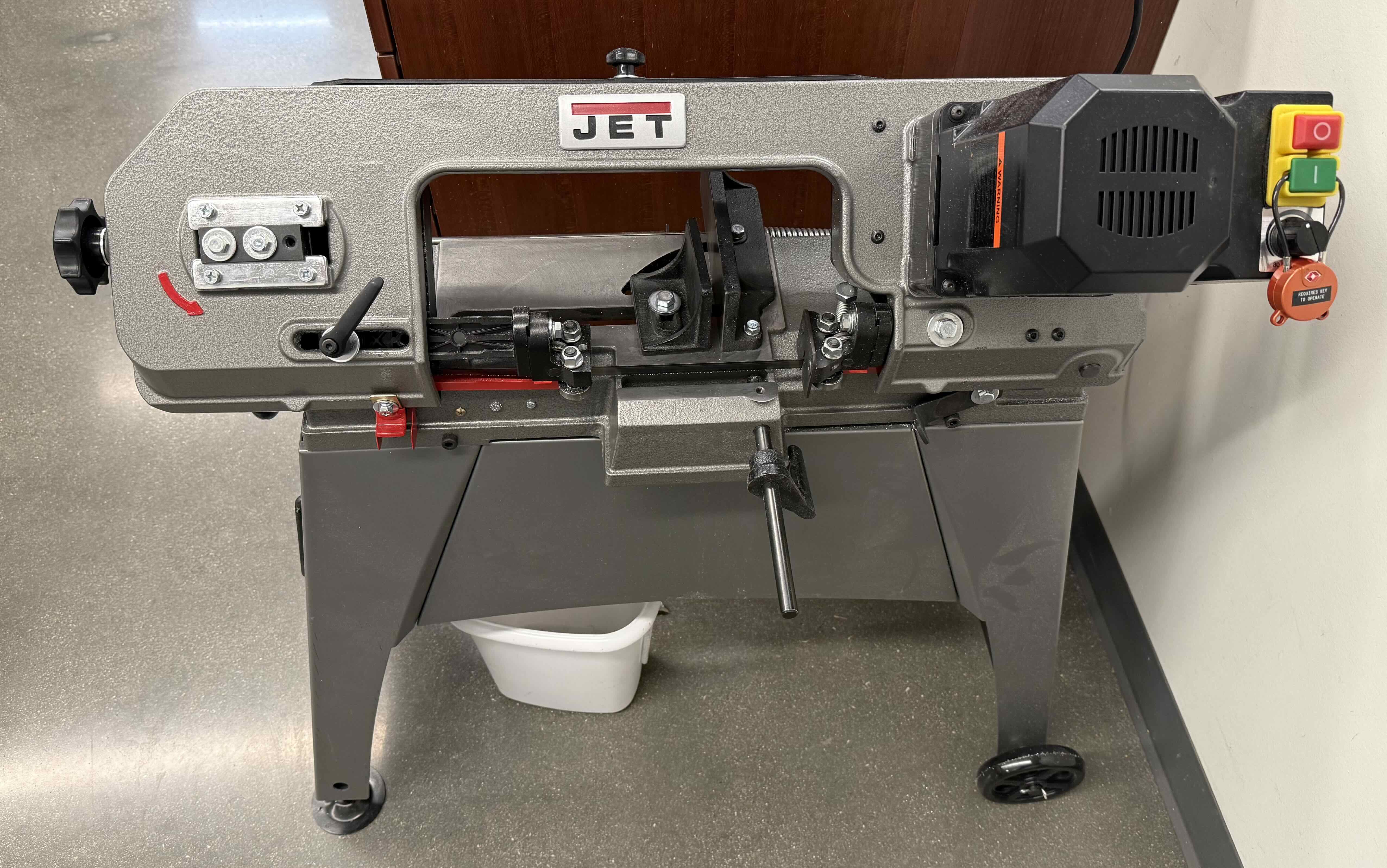

Horizontal band saw

The CRB Makerspace has a JET HVBS-56V variable speed band saw to cut plastics and non-ferrous metals.

Hazard level

RED

Warning

  • Risk of cuts from contact with moving blade
  • Risk of pinch or crush from hinge or vise
  • Blade breakage may cause flying metal fragments
  • Cut metal parts may get hot and cause burns
  • Risk of inhalation of plastic/metal dust

Safety

  • Always wear safety glasses.
  • Do not wear gloves, neckties, loose clothing, or jewelry.
  • Hold the workpiece securely in the vise.
  • Keep fingers safe distance from blade.

Instructions for use

Info

Use of this tool requires permission from management and a key to operate. Check out the key from Raphael or authorized personnel before use and return it immediately after.

Do not cut steel in the CRB Makerspace

  • Always use eye protection.
  • Request the key from the lab manager and unlock the device.
  • Raise the bow and secure it in an elevated position using the support plate.
  • Position your workpiece in vise and tighten the vise. Ensure the piece is held tightly in place.
  • Release the support plate and turn on the saw by holding the green button. Do not start the saw with the blade touching the workpiece.
  • Let the weight of the bow in conjunction with the spring tension cut through the workpiece. Do not apply additional pressure.
  • The saw will turn off when the cut is complete.
  • Reattach the lock to the green button and return the key.
  • Clean up your workspace.
